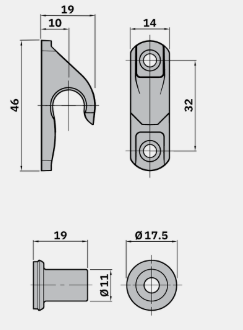

Drop Down

The Drop-down Fix is ideal for mounting high-level panels and panels carrying cantilevered loads. It requires a 15mm ‘drop-down’ gap to fit or remove the panel. The Drop-down Fix can be used in angled or horizontal applications, not suited to Push-on Fixes. For example, they can be used on ceiling panels or access panels below wheelchair-accessible washstands.

1. Material: Nylon PA6, glass filled (Button & Drop-down Fix) and Acetal (Push-on Fix)

2. Connects: 90° (to a carcass or frame)

3. Engagement: Push & click | Slide & click

4. Recessed: Surface-mounted

5. Minimum panel thickness: 10mm

Wall panel with 4 x Drop-down Fixes, guide load = 120 kg max.

Ceiling panel with 4 x Drop-down Fixes, guide load = 20 kg max.
